CASO MEDICAL SUPPLIES LIMITED

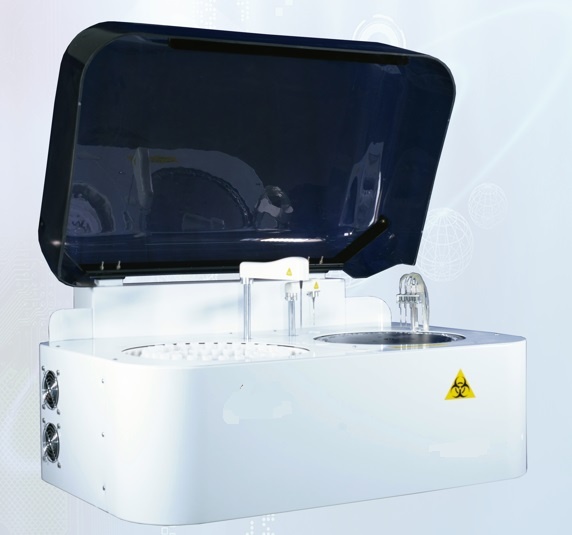

Equipment type Fully automatic discrete, STAT priority

Analysis rate Constant speed 200T/H(without ISE)

Test principle Colorimetry, turbidimetry

Analysis method End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration

Sample System

Sample Tray 49 sample positions, random access of all samples

Sample Volume 2-50ul, 0.1ul increment

Sample probe Liquid level detection, the remaining detection, collision protection etc.

Sample Containers Sample cups, Micro tube, Original blood-collection tube, etc.

Reagent System

Reagent Tray 56 reagent positions

Reagent Volume R1:25-300ul, R2:10-150ul, 0.1ul increment

Reagent Probe Liquid level detection, the remaining detection, collision protection etc.

Reagent Refrigeration 4-15℃, independent power supply, 24-hour non-stop refrigeration

Reaction System

Reaction Tray Rotating tray, 80 cuvettes

Cuvette Reusable high quality cuvette, Optical diameter 6mm

Reaction Volume 180-500ul

Incubation system Bi-directional liquid-air device

Temperature 37℃±0.1℃ with real-time display

Optical System

Light source 12V35W halogen lamps, over 2000 hours

Photoelectron road after spectrophotometry

Wavelength 340,405,450,510,546,578,630,700nm

Absorbance range 0-3.500Abs

Resolution 0.0001Abs

Operating System

PC operating system Windows XP or above

Analysis control software English version graphical operating software

Report printing Report formats support the user-defined mode, QC and state information etc.

System connection RS-232
